Stator Winding Machine


Description of stator winding machine:
Stator coil winding machine is specially designed for winding coils used in motor stators. One time can wind max. 8 coils.
Special controller can let you preset automatic transferring distance, starting point, slow start, slow stop, two terminals stop, automatic homing, automatic start, etc.

Main technical data of stator winding machine:
Model R160 R250
Suitable wire diameter Φ0.08~1.0mm Φ0.2~1.5mm
Winding die diameter ≤Φ250mm ≤Φ350mm
Winding head 1~8 pieces 1~8 pieces
Transferring distance ≥170mm ≥170mm
Max. spindle rotating speed 3200rpm 3200rpm
Air pressure needed ≥0.4MPa ≥0.4MPa
Power supply 220V, single phase, 50/60Hz
Motor power 0.75kW 1.5kW
Machine weight About 750kg About 850kg
Dimension (L x W x H) 1550x1250x1300mm 1550x1250x1450mm

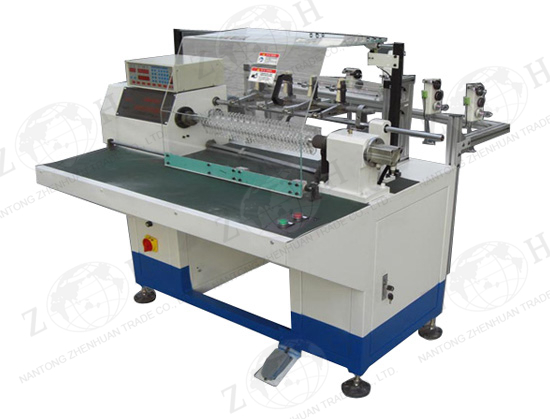

Product display
