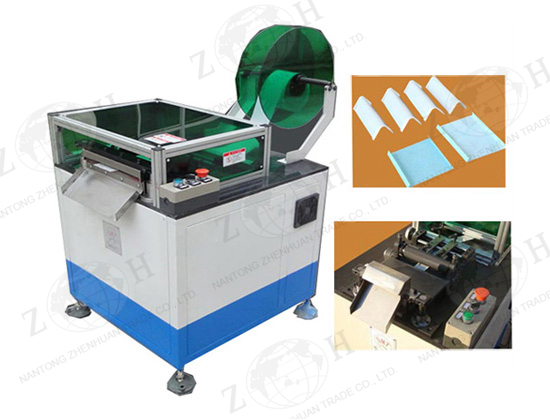

Slot Cover Paper Machine



Description of slot cover paper machine:
Slot cover paper machine is specially designed for producing slot cover papers used in motor stators.
This machine is full automatic by PLC control. PLC is Delta from Taiwan.
Paper feeding is by step motor, high feeding accuracy.
Feeding length and speed can be pre-set via TXT displayer.
There is heating device before forming for better forming result. Heating temperature is adjustable for different material.

Main technical data of slot cover paper machine:
Item Data
Model CG200
Suitable paper roll width 20~140mm
Suitable paper thickness 0.15~0.35mm
Feeding length 10~200mm
Folding width 2~5mm, adjustable
Cutting speed About 120 pieces per minute
Folding & cutting precision ±0.2mm
Power supply 220V, 50/60Hz, 0.5kW
Machine weight About 200kg
Dimension (L x W x H) 500 x 900 x 1200mm

Product display
