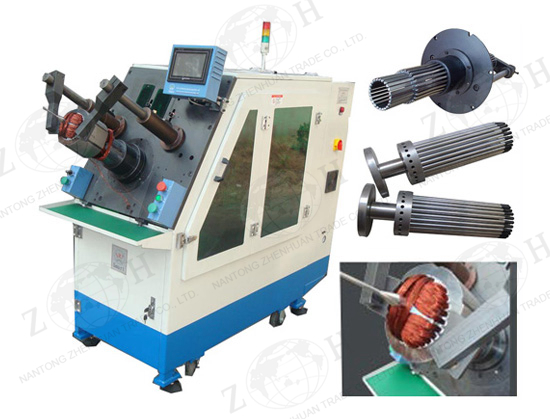

Stator Winding Inserting Machine




Description of stator winding inserting machine:
Stator winding inserting machine can automatically insert windings into slots of stator.
Winding inserting is driven by servo motor, in variable speed and in different sections.
Winding inserting speed can be preset on the touch screen according to different motor conditions.

Main technical data of stator winding inserting machine:
Item Data
Model K90
Suitable stator inner diameter Φ20~Φ100mm
Suitable stator outer diameter ≤Φ160mm
Suitable stator max. stacking height ≤120mm
Suitable wire Aluminum/cooper
Stator slot numbers 8~48 slots
Power supply 380V, 50/60Hz, 3kW
Machine weight 850kg
Dimension (L x W x H) 1800 x 650 x 1700mm

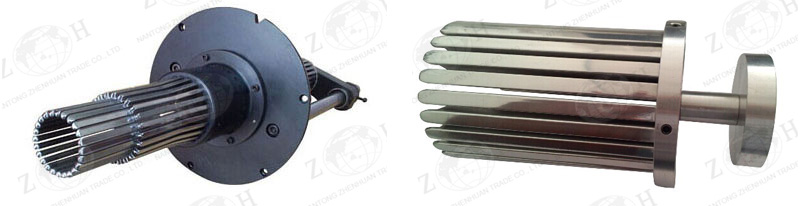

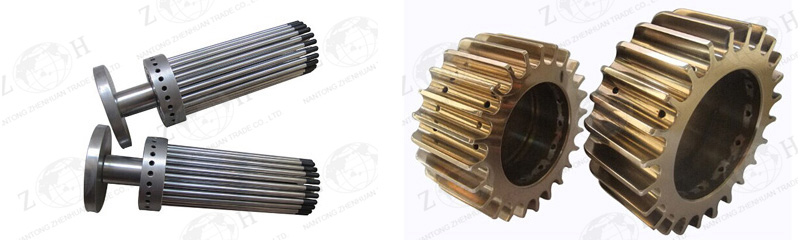

Winding inserting dies of winding inserting machine:



Winding holders for winding inserting machine:


Winding holders for winding inserting machine:

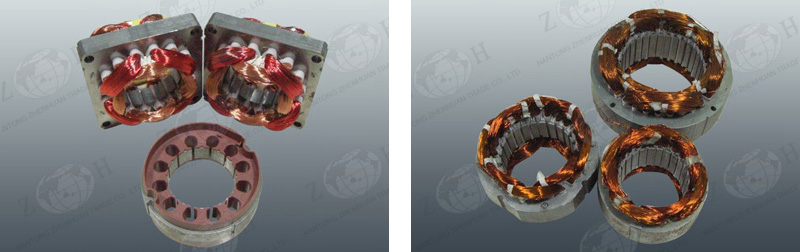

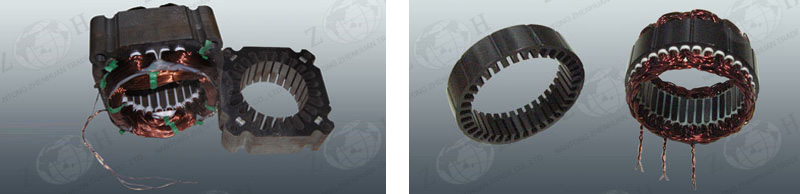

Windings inserted stators:
