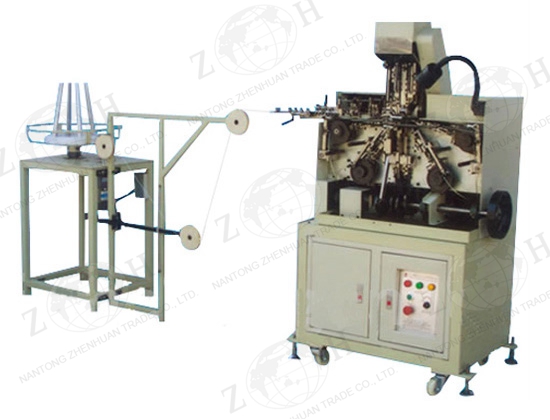

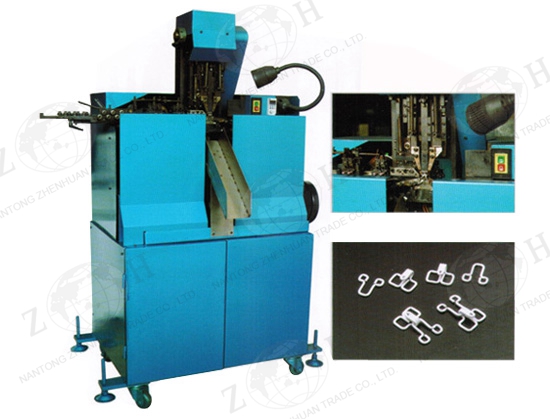

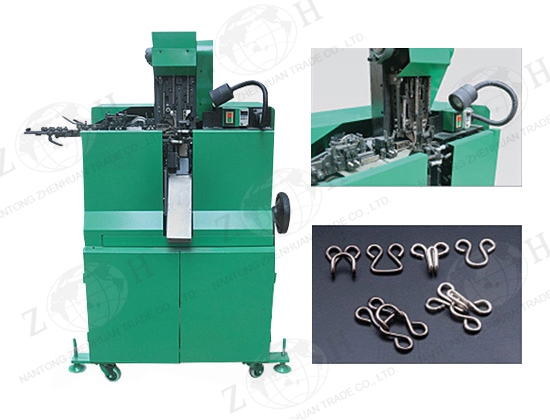

Hook and Eye Machine


Description of hook and eye machine:
Hook and eye are used for bra underwears. We have high precision full automatic machine to bend hook and eye. Because of high precision bending, there need separate machines for hooks and eyes. It also called as hook and eye making machine, hook and eye bending machine.



Working principle of hook and eye machine:



Main features of hook and eye machine:
-- Advanced technology from Germany, super high speed, good working efficiency.
-- Linear rail is THK brand, original from Japan, very high preceion and stable working
-- Main bearings are in IKO brand from Japan
-- Synchronous belt is in SANYO brand from Japan
-- Gears are made by 40Cr, adjusted and quenched, HRC 52-55, shafts are made by 45# steel, adjusted
-- Feeding & straightening rollers are made by good steel alloy, heat treated HRC 58-62
-- Polished active components surface, no damages to the coating layer of wire.

Main technical data of hook and eye machine:

Item Data
Suitable hook / eye size Based on your sample or drawing
Suitable wires Steel, stainless steel , rubber coated, dia 1.1-1.8mm
Production speed 100-150 pcs/min (hook)
200-250 pcs/min (eye)
Main driving motor power 0.75kW
Motor for pay-off device 90W
Power supply 220V, single phase
Machine dimension 1200 x 600 x 1500mm
Machine weight About 300kg

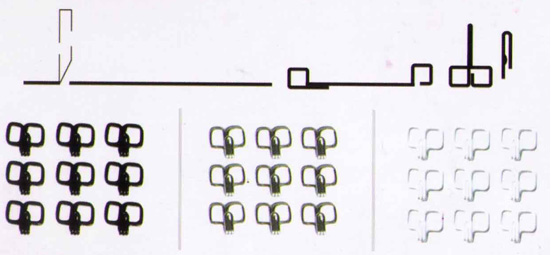

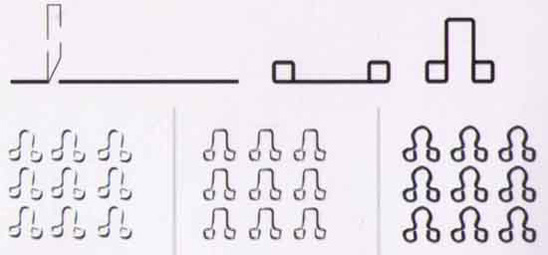

Product display
