Hook & Eye Tape Sewing Machine



Description of continuous full automatic hook & eye tape sewing machine:
Hook & eye tape sewing machine is designed specially for sewing hook & eyes to tapes with adjustable stitch pitches controlled by micro-computer.

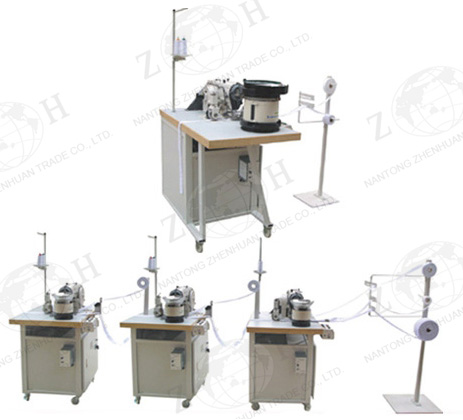

For one line, there need three eyes tape sewaing machines and one hook tape sewing machine.




Working principle of continuous full automatic hook & eye tape sewing machine:



Main features of continuous full automatic hook & eye tape sewing machine:
-- Continuous sewing hooks (eyes) to tape, non-stop, full automatic, super high speed 100pcs/min

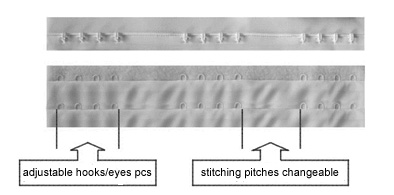

-- Stitching pitches is adjustable controlled by micro-computer, easy and convenient operation
-- Discretional sizes and stitches. Once set, the program can be called out repeatedly
-- Total 20 programs can be saved
-- HMI displays present sewing specification and finished quantity of hooks or eyes
-- Optional alarming function. When for trail test, the alarms for threak break and short of hook and eye can be shut off.
-- Automatic alarm and stop when there is no tape or hook & eye. After provide enough material, the system will start automatically.




Main technical data of continuous full automatic hook & eye tape sewing machine:
Item Data
Hook / eye tape width 9.3-99.3mm
Hook / eye numbers in one row Max. 9 pcs
Stitch pitch 9.3-99.3mm
Sewing speed 100 hooks (eyes) per minute
PLC & HMI From Taiwan
Sensors From Japan
Machine dimension (one) 750 x 1200 x 1500mm
Machine weight (one) About 270kg

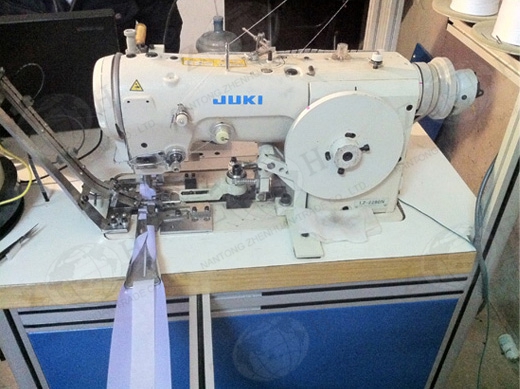

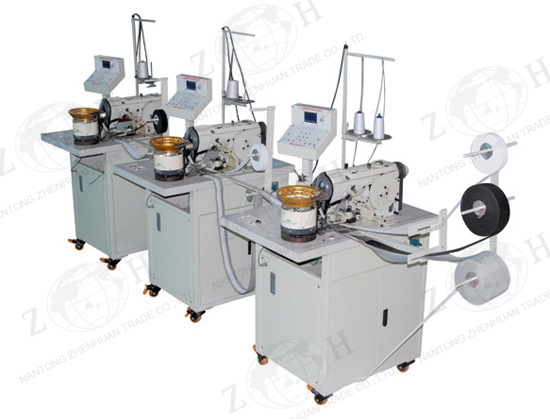

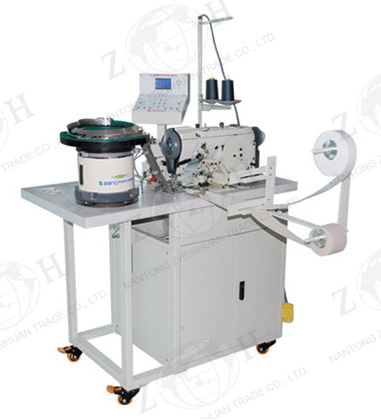

Product display
