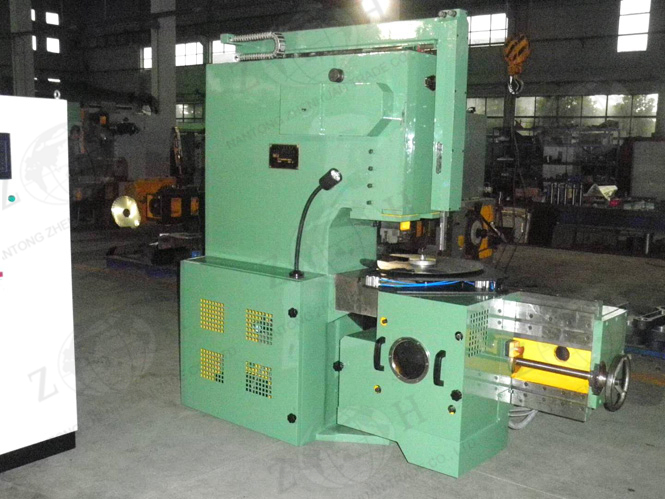

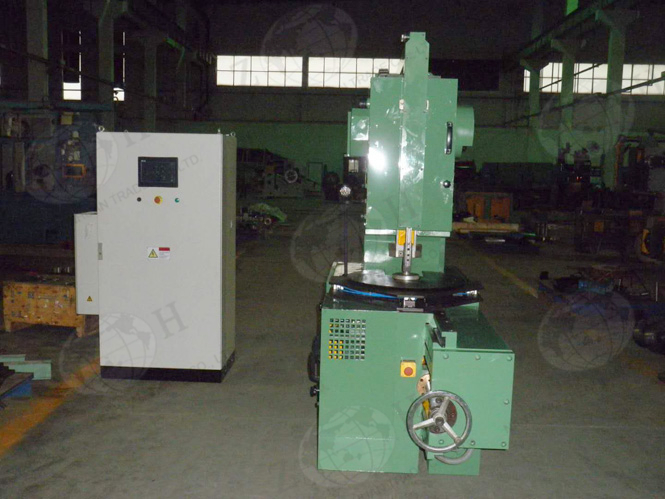

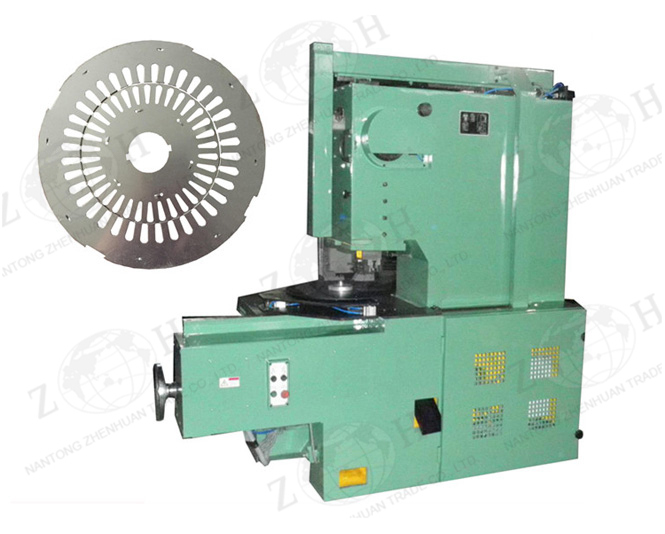

Automatic stator rotor notching press
CNC stator rotor lamination notching press

I Description of the machine
This machine is used for notching
silicon steel lamination for stator and rotors


II Main technical data
Name Data Data Data
Machine code CCM-100 CCM-160 CCM-200
Normal force 100kN 160kN 200kN
Number of slide stroke 180-700 times/min 180-600 times/min 180-600 times/min
Slide stroke 20mm 16mm 16mm
Max. closing height 210mm 220mm 220mm
Regulating variable of closing height 25mm 35mm 40mm
The distance of slider center and machine body 260mm 350mm 400mm
The distance of indexing spindle center and slider center 35-500mm 135-650mm 135-800mm
Suitable number of grooves 1-999 1-999 1-999
Diameter of lamination Φ90-1300mm Φ300-1500mm Φ300-1500mm(Φ1800mm)
Thickness of lamination 1.5mm 2.0mm 2.0mm
The size of worktable 270 x 420mm 250 x 450mm 370 x 480mm
Floor plan size for slider 110 x 170mm 140 x 210mm 140 x 210mm
Working pressure of compressed air 0.55-0.6MPa 0.4Mpa 0.4Mpa
Dimension (L x W x H) 2570 x 1000 x 2150mm 2770x 960x2240mm 2970×960×2240mm
Video link https://youtu.be/7ii6g5qwA84
