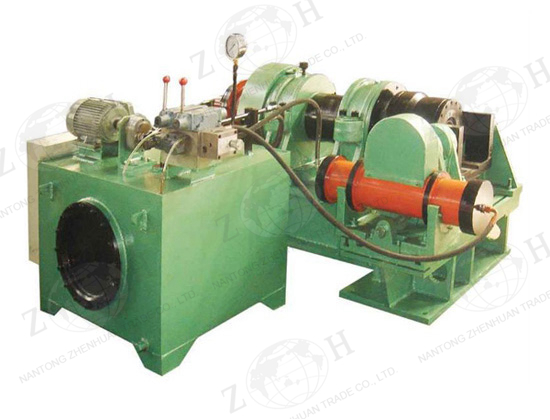

Extinguisher Cylinder Hot Spinning Machine




Description of extinguisher cylinder hot spinning machine:
This machine can close-in or neck-in seamless steel pipe to form a cylinder for different purpose, such as extinguisher cylinder, gas cylinder, etc.
It adopts hot spinning principle, automat hydraulic clamping and spinning, very high efficient.
By adjusting die, both closing-in and necking-in can be achieved.
The cylinders are clamped by hydraulic cylinder in tail position and such cylinder rotates simultaneously with main spindle, the process is very stable.

Main technical data of extinguisher cylinder hot spinning machine:
Item Data
Main spindle rotating speed 300~400rpm
Main motor power 15kW
Hydraulic station motor power 5.5kW, 1440rpm
Hydraulic pressure Max.15MPa
Clamping force 120KN
Die pushing force 50KN
Max. cylinder diameter 108~180mm
Max. cylinder length 1400mm
Production speed 120~450 pieces per 8 hours shift
Dimension 3400 x 1450 x 1000mm
Weight About 7T

Photo of spun extinguisher cylinders:
