Spiral Sand Control Filtration Screen Tube Welding Machine

HVAC Duct Machines Wire Bending Machines Bra Making Machines Tube/Pipe Machines Tank Machines Metal Processing Machines Motor Making Machines Welding Machines Battery Machines Metal Spinning & Flanging Mach Textile Machine Packing & Wrapping Machines Heat Exchange Machines Other Machinery

I Description of spiral sand control filtration screen tube welding machine:
For petroleum and chemical sand control filtration, spiral welded screen tubes will be used mostly.

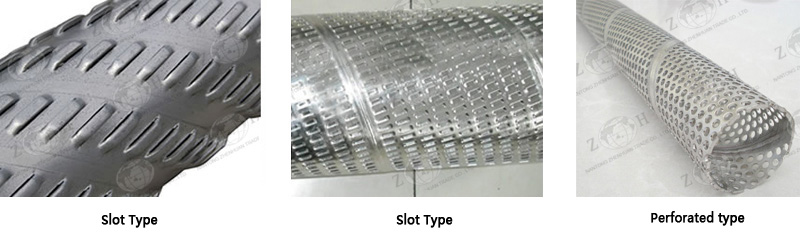

And normally there are two kind of screen tubes for sand control filtration purpose:

The machine adopts TIG for spiral seam welding, clean and stable.

II Main technical data of spiral sand control filtration screen tube welding machine:

Item	Data
Suitable raw material	Carbon steel, stainless steel
Raw material thickness	0.8-2.0mm
Material strip width	100-300mm
Filter screen tube diameter	Φ 60-300mm
Main driving motor power	2.2kW
Welding method	TIG
Cutting method	Plasma non-stop cutting
Production speed	0-15m/min
Main machine dimension	1500 x 1300 x 1400mm
Weight	About 1000kg

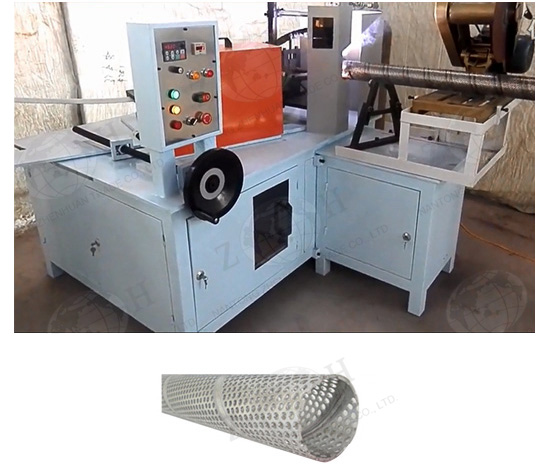

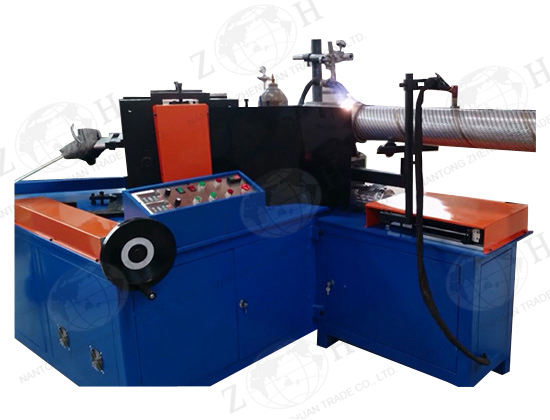

Product display
