CNC Rebar Bending Machine

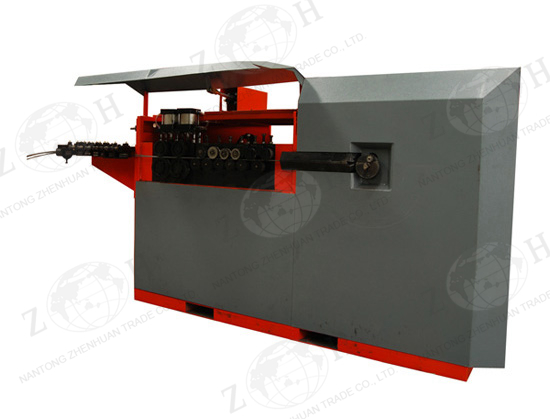

Description of CNC rebar bending machine:
This machine is for bending rebar stirrups used in reinforcement concrete full automatically.
Rebar stirrups shape, size and quantity can be preset on HMI.

Main technical data of CNC rebar bending machine:

Item	Data
Single strand rebar diameter	4--12mm
Diameters of double strands	4--10mm
Max. bending angle	360°
Length scope of the stirrup side	50-1100mm
Max. pulling speed	100-120m/min
Max. bending angle	1100°/sec
Feeding length tolerance	±1mm
Bending angle tolerance	±1°
Rated electric power	19kw
Overall machine weight	1.5T
Machine size	3400 x 1200 x 1600mm
Productivity (example: stirrup with 8mm diameter and 1.2m length)	About 10t per 8hours

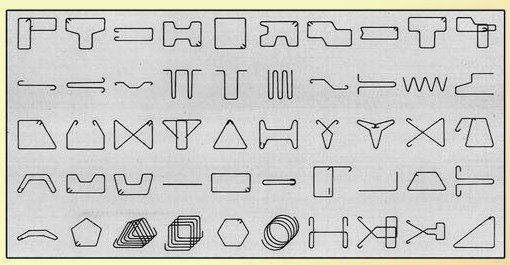

Stirrup shapes can be bent by CNC rebar bending machine:

Product display
