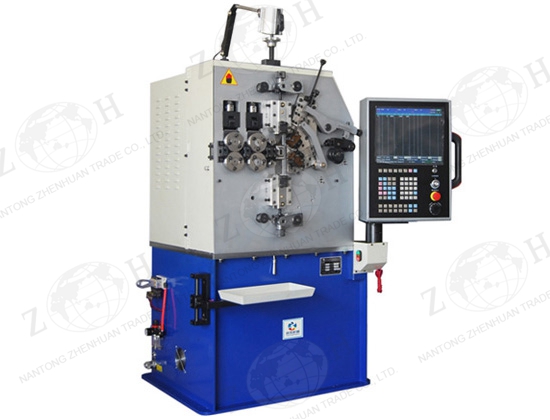

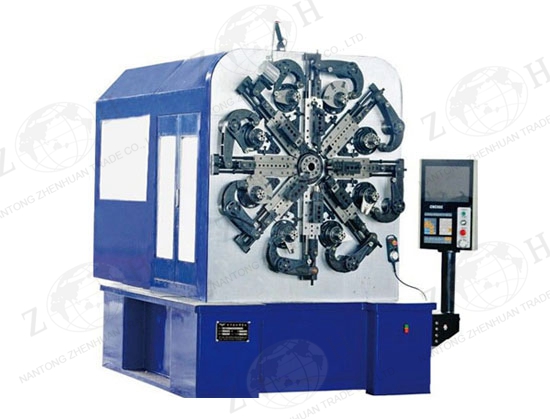

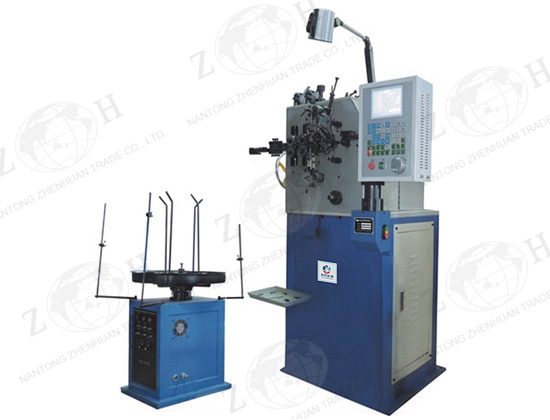

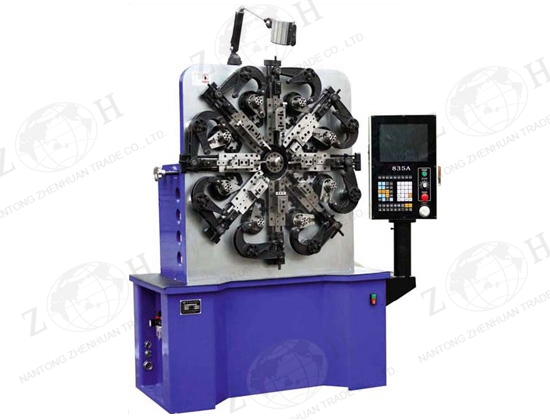

Spring Coiling Machine


Description of CNC spring coiling machine:
There are two-axis, three-axis, four-axis, six-axis and max. 12-axis CNC control spring coiling machines, suitable for producing different kind of springs.


Main features of CNC spring coiling machine:
-- World famous CNC control system and servo motor
-- Equipped with precision detection tracking device which can automatically stop machine when there is an unqualified product.
-- OD and angle of spring can be revised in real time according to working condition displayed on HMI.
-- Compulsive lubricating
-- Automatically stop whenever wire finished, wire broken or wire tangled
-- Pay-off can automatically accelerate




Main technical data of CNC spring coiling machine:
Item ZH-822A ZH-835A ZH-845 ZH-850 ZH-860A
Suitable wire gauge Steel wire mm 0.2-2.5 1.0-3.5 1.0-4.2 1.5-5.0 2-6
Iron wire 0.5-3.0 1.0-4.5 2.0-6.0 2.0-7.0 3.0-8.0
Max. spring OD mm 60 80 80 80 80
Feeding pitch mm 0.01-9999.99
Feeding speed m/min 0-110
Cam rotating pitch ° 0.1~359.9
Cam speed rpm 0~60
Feeding servo motor kW 2.7 4.4 5.5 7.0 7
Cam servo motor kW 2.7 4.4 5.5 7.0 7
Core rotating servo motor kW 0.75 1 1.5 2.0 1.5
Machine dimension L mm 1055 1320 1320 1520 1320
W 560 730 730 830 730
H 1540 1720 1720 1920 1720
Weight kg 880 1800 1900 2600 5800
There are many other kind of spring coiling machines in higher speed. We can design our spring coiling machines based on your requirements.

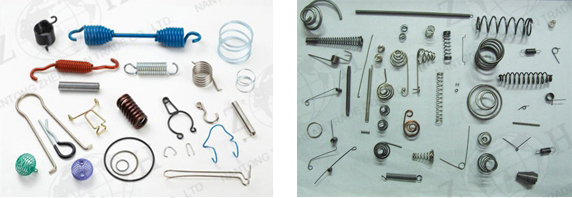

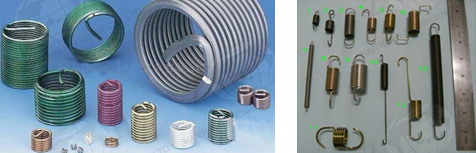

Product display
