Wire frame Bending Machine





I Description of wire frame bending machine:

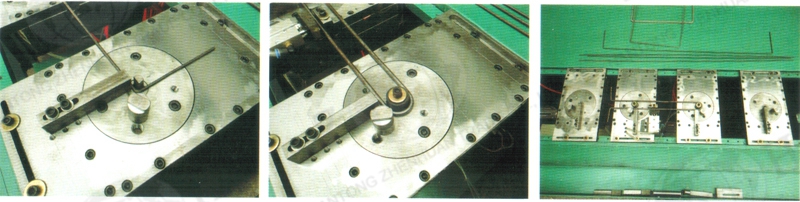

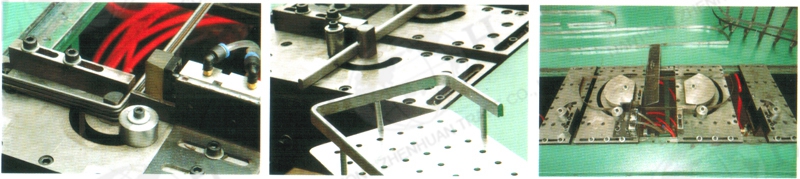

This machine adopts pneumatic as power, bending wires into different frame products. There are four bending heads, position adjustable for different frame product size. Each bending head is separate controlled and bending angle is also adjustable.
Four angles one time forming, simple operation only by foot switch.
There are two kinds machines, WKJ-A can only bend 90º angles while WKJ-B can bend any angles max. 180º.

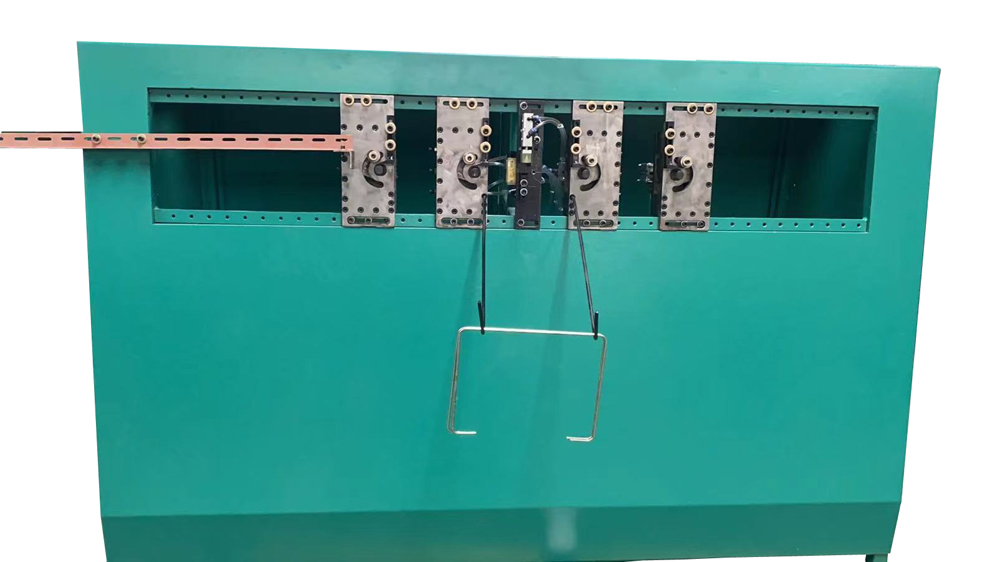

Vertical frame bending machine is with feeding frame, worker can take out many pieces together per time.

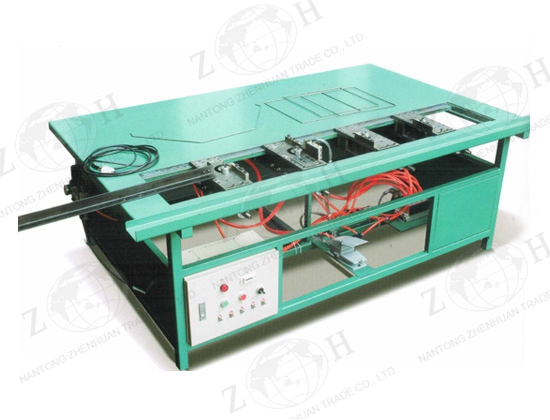

WKJ-A

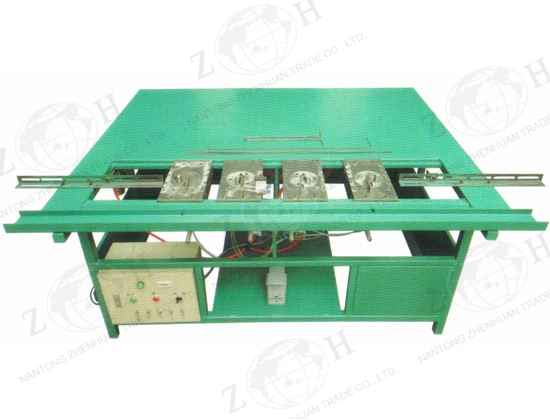

WKJ-B

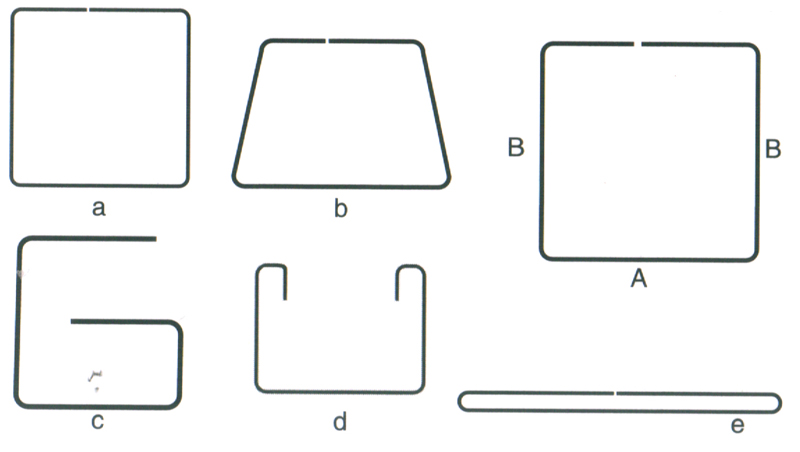

Wire Frame Sketchs

Main technical data of wire frame bending machine:
Item WKJ-AI WKJ-AII WKJ-AIII WKJ-B
Suitable frame product ac ac ac abcde
Suitable frame dimension (mm) A 90-1160 70-1160 58-1192 190-1160
B 170-700 150-720 130-740 210-670
Suitable A+B+B size (mm) Less than 1500mm
Suitable wire diameter and max. qty. bent together 2mm 11 pcs 9 pcs 8 pcs 11 pcs
3mm 7-8 pcs 6 pcs 5 pcs 7-8 pcs
4mm 6 pcs 4 pcs 3 pcs 6 pcs
5mm 4 pcs 3 pcs 2 pcs 4 pcs
6mm 4 pcs 3 pcs 1 pc 4 pcs
7mm 3 pcs 2 pcs - 3 pcs
8mm 2 pcs 1 pc - 2 pcs
9mm 1 pc 1 pc - 1 pc
10mm 1 pc 1 pc - 1 pc
Suitable radius of U bend - R5-12.5
Machine dimension (mm) 2100 x 1350 x 750 2100x1700x750
Machine weight  (kg) 300 350

Photos of sample products made by wire bending machine:

Product display
